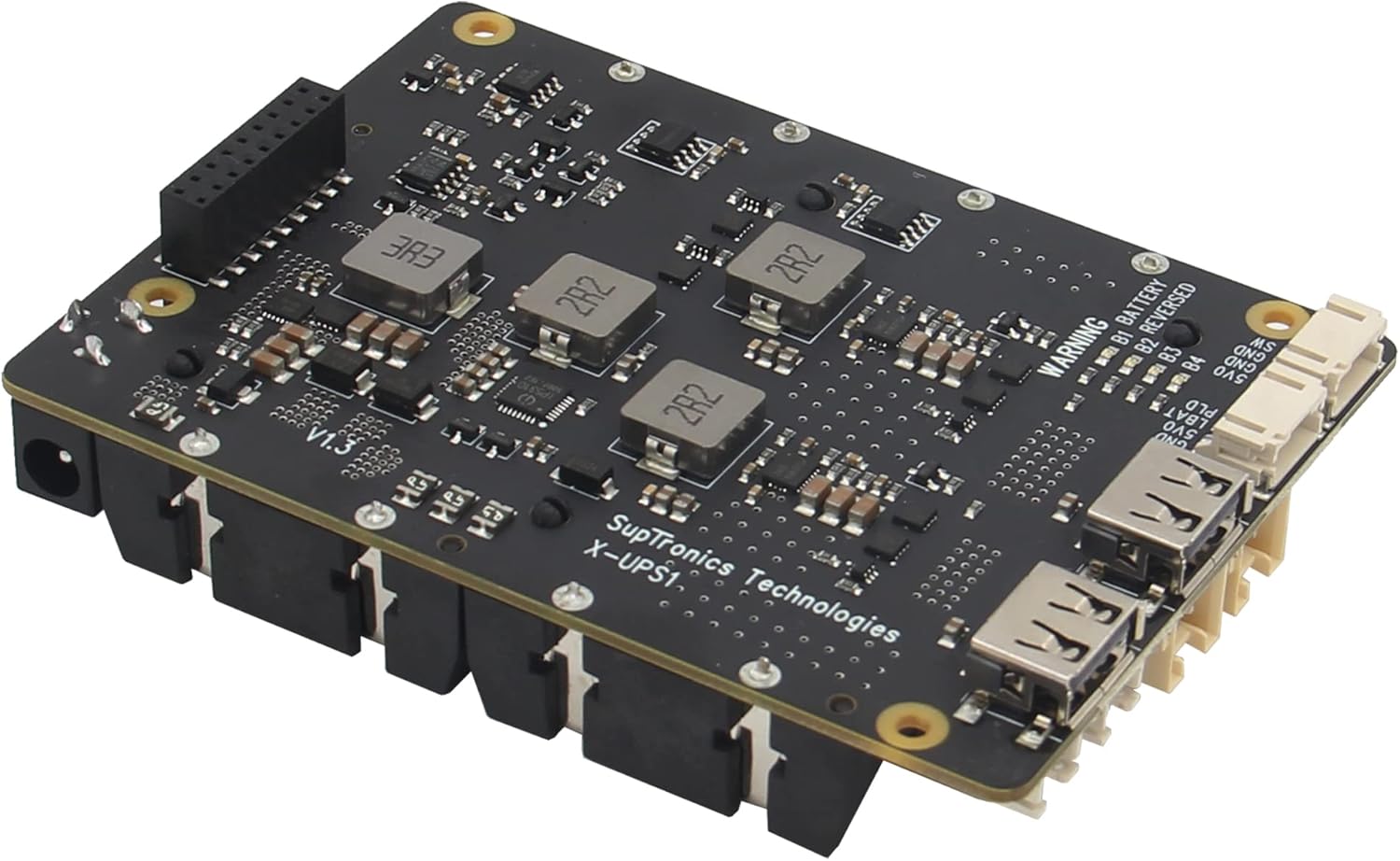

Geekworm X-UPS1 12V/5V Dual Output Universal SBC Stackable Uninterruptible Power Supply UPS Shield with Acrylic Plate Compatible with Raspberry Pi/Orange Pi/Jetson Nano/Rock Pi/Tinker Board
4.8 (126 items)
Limited Time SaleUntil the end
12
46
09
US$54.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$36.00
Product details
| Management number | 212361726 | Release Date | 2026/04/06 | List Price | US$36.00 | Model Number | 212361726 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Compatibility: Compatible with most Single Board Computers (SBC) that uses 12Vdc or 5Vdc, such as Orange Pi 5/5B/4B, Raspberry Pi 5/4B/3B+/3B, Jetson Nano, Jetson Orin Nano, Jetson AGX Orin,Tinker Board, Rock Pi, Arduino etc

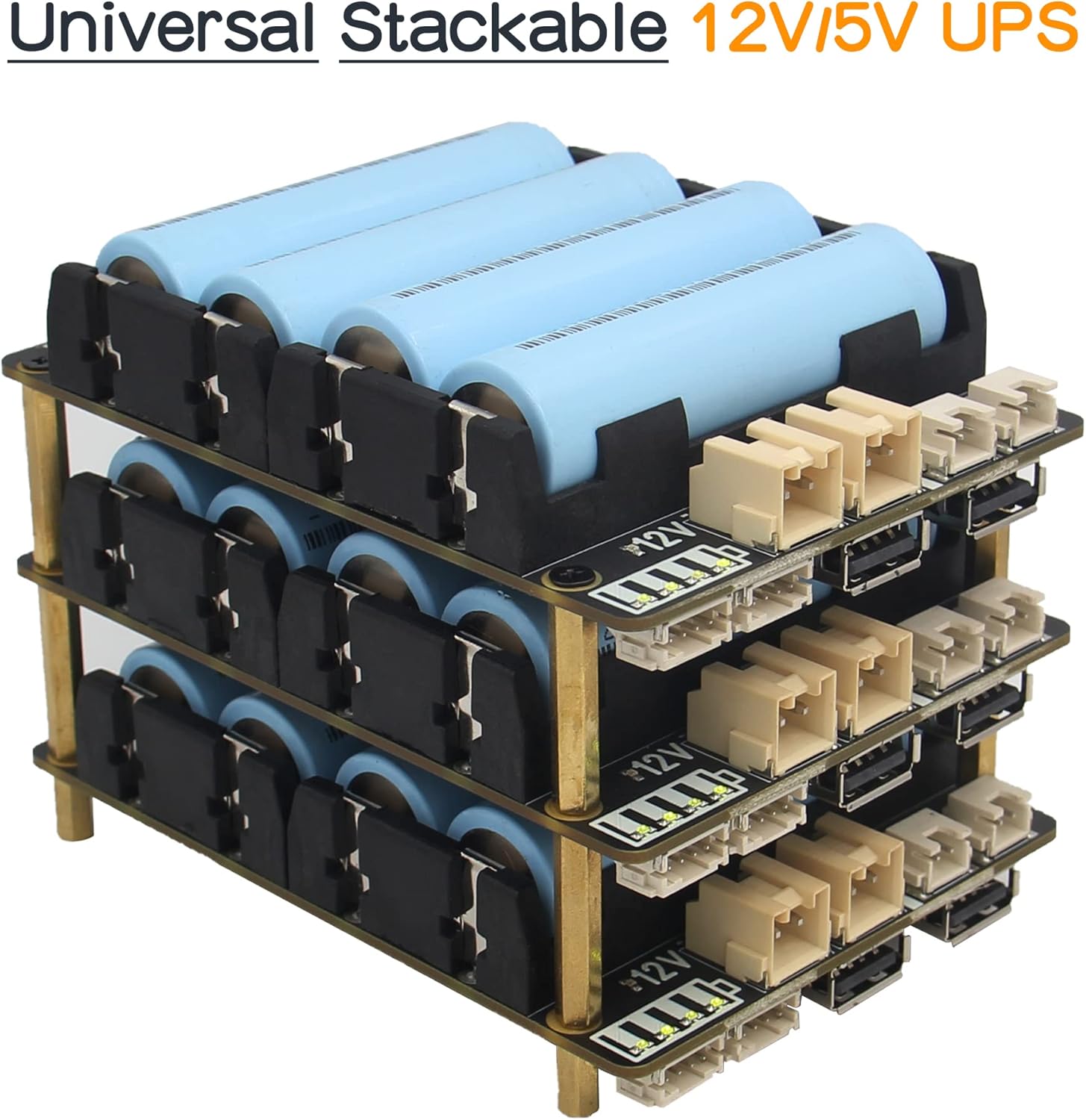

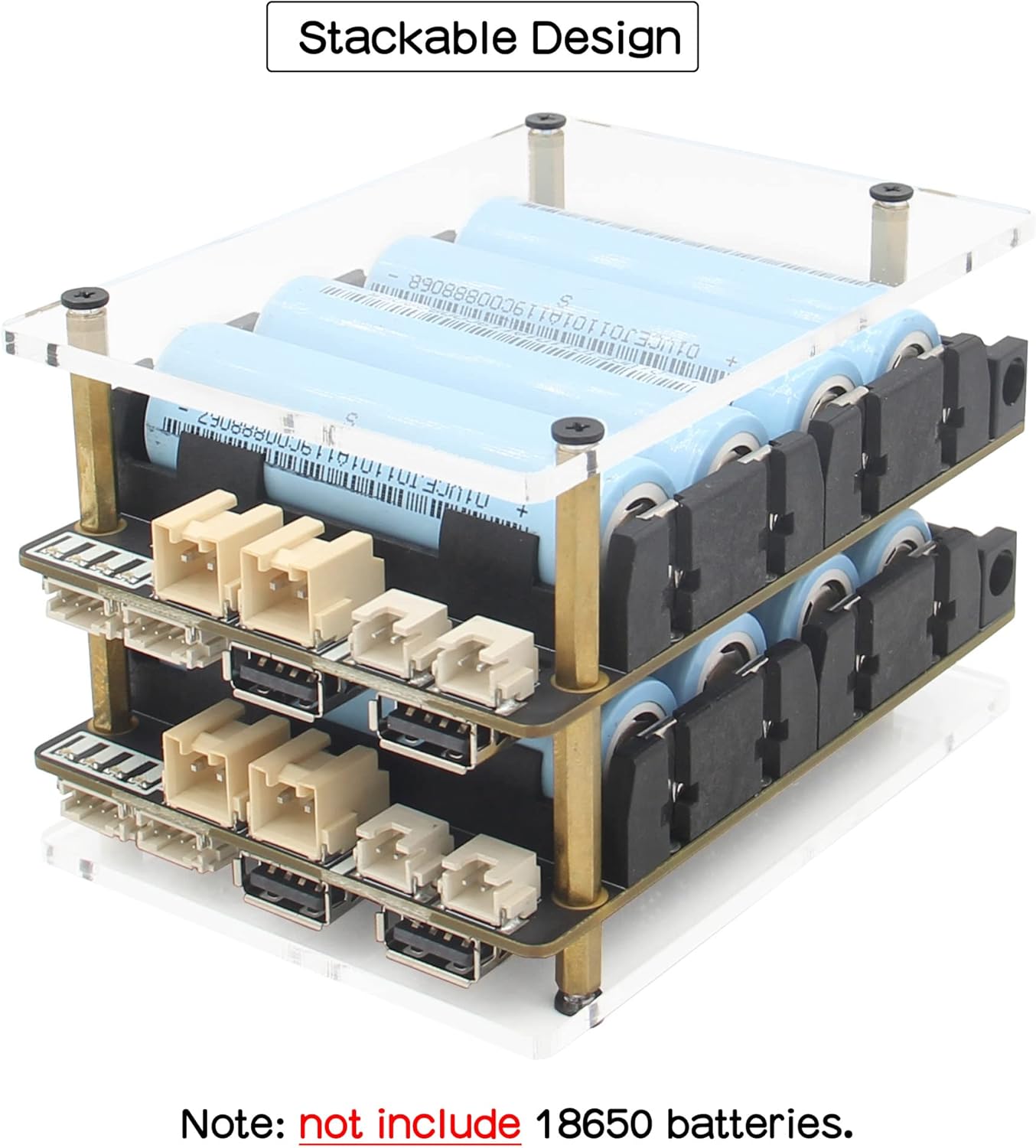

- Stackable Design: X-UPS1 can be stacked to increase output current and battery life, each board provides max 3A power backup; Stack several X-UPS1 to provide long-lasting and higher output power for 24/7
- Specifications: Power input (Single board) : 6-18Vdc ±5%, ≥3A; UPS output voltage : 12Vdc ±5%, 5.1Vdc ±5% UPS output current (Single boards) : Max 3A; UPS charging current (Single board) : 2.3~3.2A
- Multi Function: Wide power input 6-18V;AC power loss or power adapter failure detection;Low voltage detection; Auto power on; Protection of battery cell reverse connection
- Packing List: 1 x X-UPS1 Expansion Board(not include battery); 1 x 4Pin PH2.0 to dupont cable; 1 x VH3.96 to DC5525 Cable; 1 x XH2.54 to DC5521 Cable; 1 x GPIO Header; 1 x Screws Pack
| Brand | Geekworm |
|---|---|
| Color | black |
| Voltage | 24 Volts |
| Wattage | 72 watts |
| Amperage | 3 Amps |
| Form Factor | Rack |
| Item Weight | 89 Grams |
| Manufacturer | Geekworm |
| Model Number | X-UPS1 |
| BuiltIn Media | 1 x 4Pin PH2.0 to dupont cable, 1 x GPIO Header, 1 x Screws Pack, 1 x VH3.96 to DC5525 Cable, 1 x X-UPS1 Expansion Board(not include 18650 battery), 1 x XH2.54 to DC5521 Cable |
| Input Voltage | 24 Volts (DC) |
| Maximum Power | 72 Watts |
| Connector Type | VH3.96, XH2.54, USB TypeA |
| Output Current | 3 Amps |
| Output Voltage | 12 Volts |
| Output Wattage | 72 Watts |
| Frequency Range | 50/60 Hz (± 3 Hz) |
| Item Dimensions | 4.23 x 3.04 x 1.04 inches |
| Mfr Part Number | TB-2023-73 |
| Power Plug Type | Type A - 2 pin (Japanese), Type A - 2 pin (North American), Type B - 3 pin (North American & Japanese), Type C |
| Battery Cell Type | Lithium Ion |
| Number of Outlets | 6 |
| Enclosure Material | Acrylic |
| Warranty Description | 3 months |
